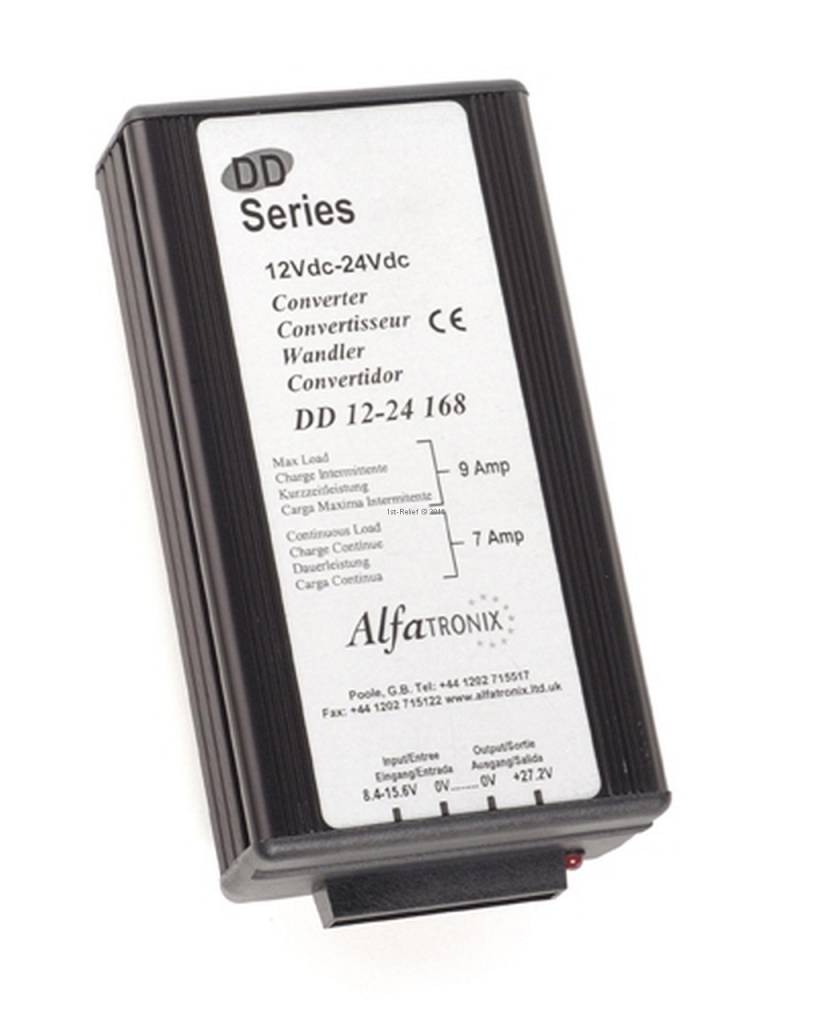

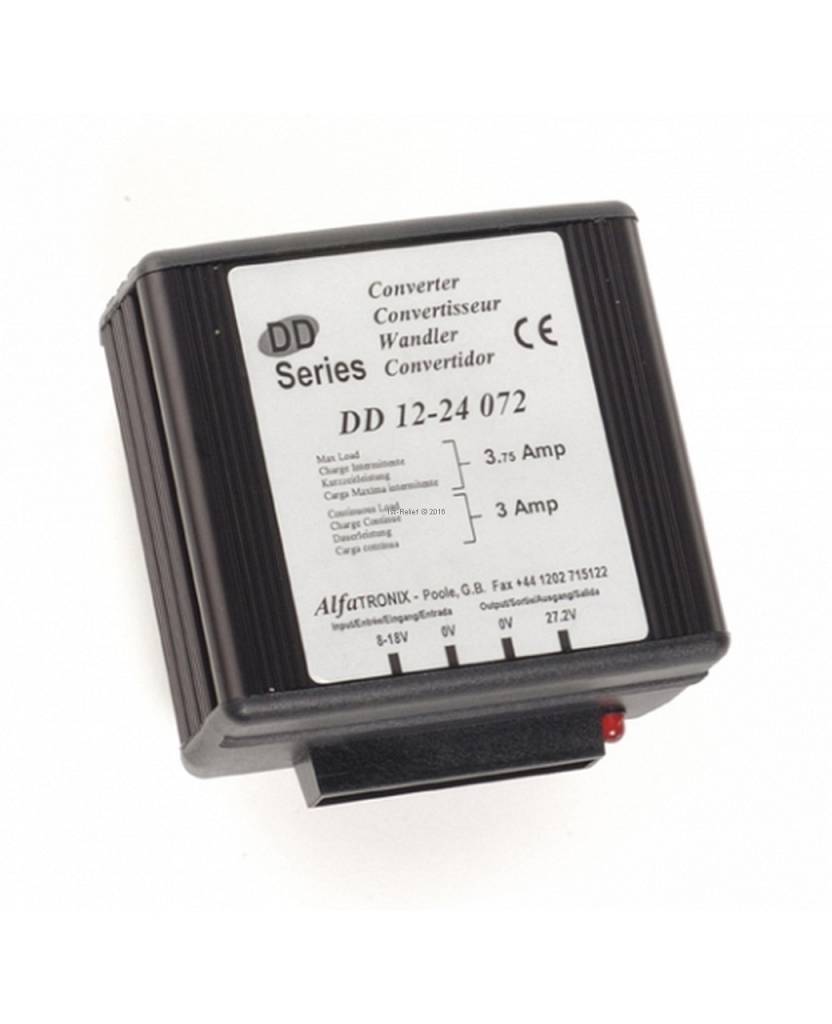

    12 VDC to 24 VDC Converter non-isolated

    €161,-* Goods to order; Europe 21 Days, RoW 24 Days
    12 VDC to 24 VDC Converter non-isolated... Show more
    10 variations Power: 72 W, Protection-class IP65: Yes

    Product description

    If you need to fit 24V equipment onto a 12V electrical system, then an "up" converter from the DD Series offers a fast and easy way to configure your system. With a range from 72W (3A output) to 600W (25A output), these products offer state of the art designs for fast installation and long term reliable operation.

    All products fit onto a “Click ‘n’ Fit” mounting clip which is fixed in three points allowing it to be mounted on uneven surfaces.  It is easy to fit the clip into awkward places and then simply click the unit into position.

    Technical information

    Input voltage range12 VDC nominal (10.0V-15.0V)
    Output voltage27,2 VDC +/-5% at extremes of temperature, load, input tolerance, etc.
    Continuous current rating3 A - 25 A depending on model.
    Intermittent ratingContinuous rating +20%, taken for a maximum of 2 minutes followed by 8 minutes rest
    Transient voltage protectionMeets ISO7637-2 International standard for 24 VDC commercial vehicles
    Electrostatic voltage protectionMeets ISO10605, ISO14892, >8 kV contact, 15 kV discharge
    Output noise<100mV pk-pk at continuous load.
    Off load current (quiescent current)<20m A (400 W and 600 W versions enable off), less than 100 mA (72-240 W units)
    Power conversion efficiencyTypically: 93%
    Operating temperature-25ºC to +30ºC to meet this specification table
     +30ºC to +80ºC de rate linearly to 0 A
    Storage temperature-25ºC to +70ºC
    Operating humidity95% max., non-condensing
    CaseworkAnodised aluminium, glass filled polycarbonate, dust water and impact resistance to IP533.

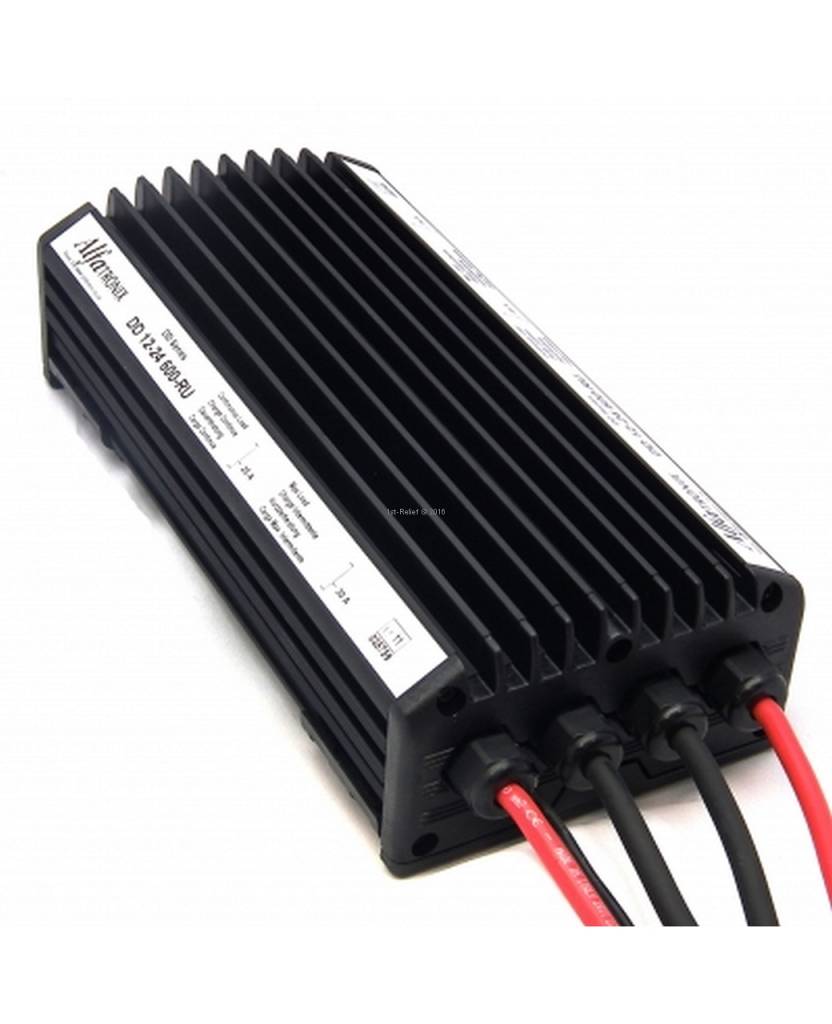

     Ruggedized versions also available to IP65
    ConnectionsFour 6,3 mm push on flat blade connectors (72-240 W)

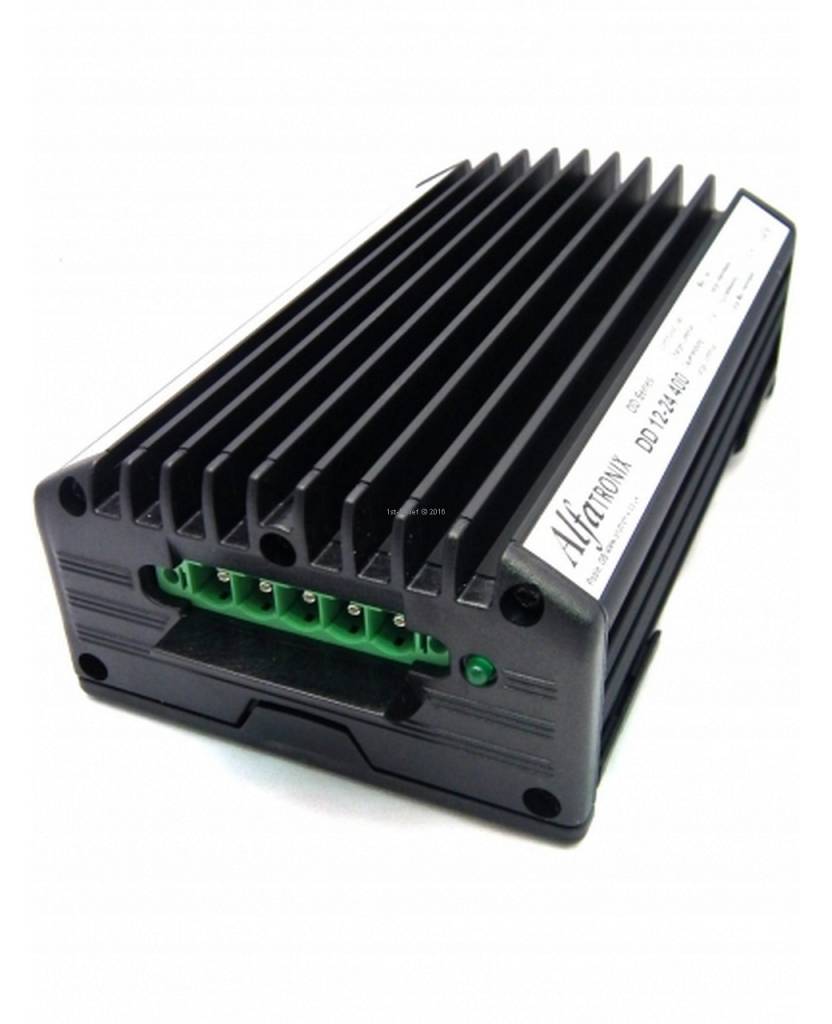

     Five terminal connector with screw tightening with mating half supplied (400 and 600 W units)
    Output indicatorGreen LED adjacent to output terminals
    Mounting method‘Click ‘n fit mounting clip, fitted separately using 3 hole fixing (4 hole on 400 and 600 W)
    Safe area protection: Over currentLimited by current sensing circuit
    Over heatLimited by temperature sensing circuit
    TransientsProtected by filters and rugged component selection
    Input / Output over voltage protectionControlled by internal circuitry
    Catastrophic failureProtected by internal input and output fuses
    Approvals2004/108/EC The general EMC directive
     2006/96/EC The automotive directive
     93/68/EEC The CE marking directive
    MarkingsCE and e marked



    Manufacturer information

    • Manufacturer: Alfatronix Limited
    • Partnumber: DD_12-24_600
