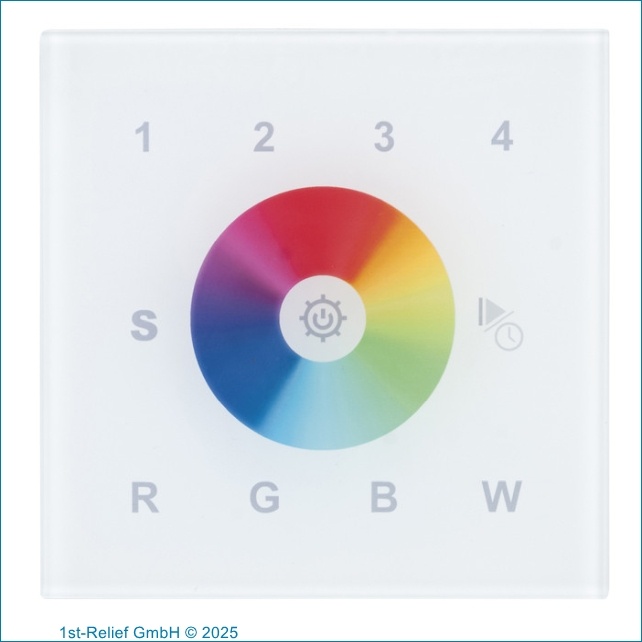

    DMX512 Controller Play-XV Wall Panel RGBW with WiFi Access for sophisticated lighting control of up to 4 Zones

    €149,-* Goods to order; Europe 14 Days, RoW 17 Days
    DMX512 Controller Play-XV Wall Panel RGBW with WiFi Access for sophisticated lighting control of up to 4 Zones. The standard controller DLC-4 enables the connection and control of all the models of Astel LED Lights with DMX512.... Show more

    Product description

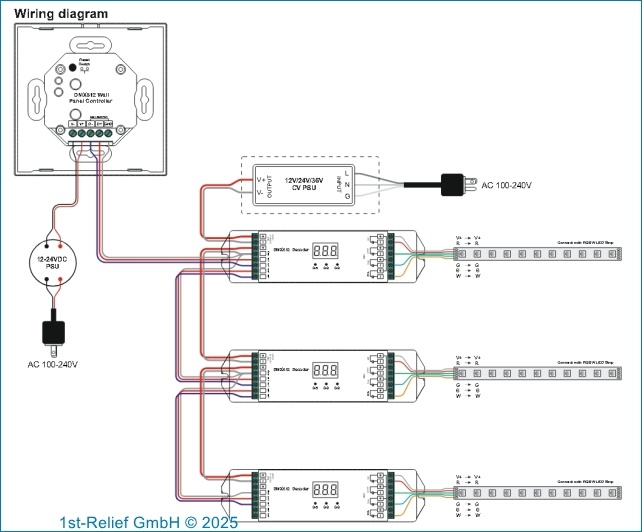

    The DMX512 Controller Play-XV Wall Panel RGBW with WiFi Access for sophisticated lighting control of your Yacht or Superyacht of up to 4 individual zones. By using DMX512 interface it allows connection and control of all models of 1st-Relief LED Lights (use at least one interface converter). Up to four pre-set scenes / colours with fade time, speed and brightness adjustment can be used in each zone.

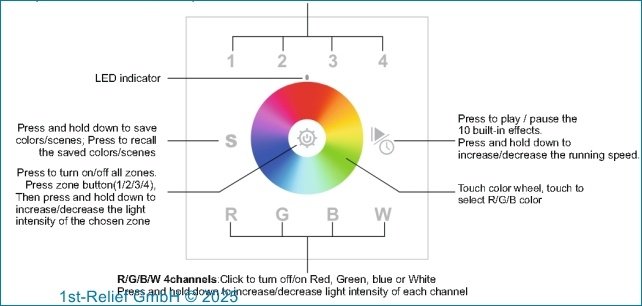

    This wall panel is controlled by touch or via Wi-Fi through the Easy Lighting app (Android & IOS) and generates a DMX signal. It can control up to 4 zones and supports up to 4 channels for each zone.

    Construction

    • Touch and Wi-Fi control
    • Generates DMX signals
    • Controls up to 4 zones, each with 4 channels
    • LED indicator to display the current output
    • 4 function menus

    Technical Information

    • Input Voltage [VDC]: 12 – 24
    • Channels: 4
    • Dimming: DMX

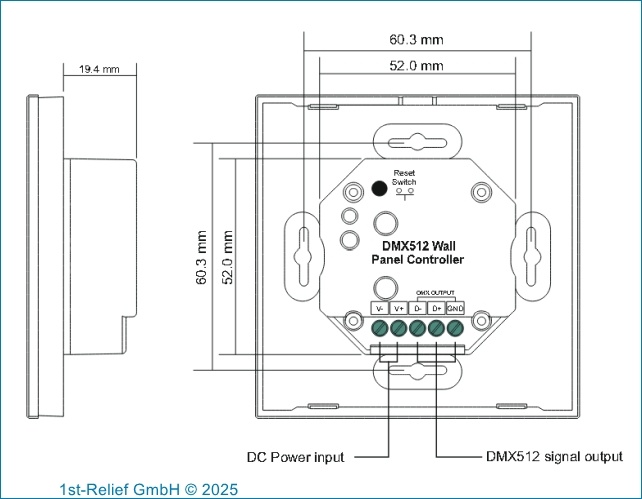

    • Dimensions [mm]: 86 x 86 x 31
    • Product weight [kg]: 0,2
    • Operating temperature [°C]: -20 to + 50
    • IP rating: IP20

    Manufacturer information

    • Brand: Artecta
    • Partnumber: 1st00A9990367

    Specifications

    Article number
    1st00A9990367

    Reviews

    0 from 5Based on 0 reviews
    Create your own review

    There are no reviews written yet about this product..
