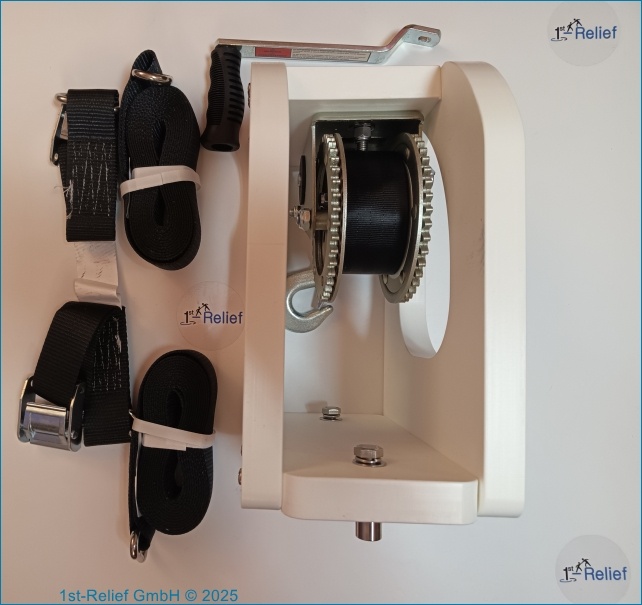

Roller Winch to assists loading watercraft

VersaChock manual winch works great with VersaChock tilting davits (1st23VCTILTHD, 1st23VCTILTG3WHL and 1st23VCTILTG3) and roller kits (VCROLLER25, VC4ROLLER25). The winch assists loading watercraft and is removable leaving just the low-profile threaded deck plates for a trip-free deck! Winch can be used with VersaChock transom guide (1st23VCCTRRLR) to help guide the winch strap (see product info for these accessories for usage). The manual winch can also be used with VersaChock’s exclusive blind fastener system (1st23VCBLINDFSNTR) when access to the backside of mounting surface or a second set of hands is not possible. Winch housing made of HDPE. Winch is zinc plated steel and includes 6 m/ 20 foot x 2,54 cm / 2 inch wide web strap and galvanized snap hook.

Construction

• Removes easily with two M10 eyebolts (included).
• Includes two threaded deck plates made with 316 stainless steel.
• Requires six #10 oval head screws to fasten to deck (not included)
• Housing material: high quality HDPE
• Hand winch with a 6 m / 20-foot strap/snap hook
• Winchmaterial: zinc plated steel
• Breaking load [kg / lbs]: 544 / 1200
• Working load limit [kg / lbs]: 136 / 300 lbs
• approximate Dimension excluding handle (width x length x height) [cm / inch]): 25,65 x 17,02 x 31,50 / 10,1 x 6,7 x 12,4
• Weight [kg / lbs]: 9 / 20

Manufacturer information

• Manufacturer: VersaChock
• Partnumber: VCROLLERWINCH
